rac-status.sh : an overview of your RAC / GI 11g,12c, 18c ,19c, 21c, 23c resources in a glimpse

Consolidation has been a fancy word and concept for years in IT resulting for us DBAs with more and more databases and instances running on more and more powerful / bigger clusters running RAC (Real Application Cluster) before and now GI (Grid Infrastructure) from 12c version.

It is kind of nice to have to manage all these big clusters / appliances but sometimes what was easy before become less easy like quickly answering these questions :

what is up ?
what is supposed to be up ? (which is fairly different from the previous one)
where is it up ?
have we missed a problem ?

And quickly answering these questions on a Full Exadata Rack with 100 databases running on is not that easy with the common tools.

I then made a tool to be able to answer these questions and have a nice result in a glimpse (please note that all the below screenshots come from real implementations, I have just anonymized the outputs for obvious reasons.

Feel free to also check the the rac-status.sh: FAQ and the rac-status.sh what's new post. You can download the script here, there are download links for each script in the "Scripts" menu on top of each page.

Overview

Please find below an overview of the rac-status.sh script on an Exadata X8-2 half rack :

You will find in this output :

The Exadata model (if available, if not, it shows nothing) or nothing for a non-Exadata RAC
The first column on the left contains the names of the databases running across the cluster; please note that this column is auto adaptive if you have long database names
The second column contains the version (grabbed from the ORACLE_HOME path, the GI has no information on the installed version) and you will find a number "(1)" which refers to the ORACLE_HOME path the database is running against. You will find the ORACLE_HOME list below the table, it is very handy when you have many ORACLE_HOME installed
The next columns are the status of each instance on each node (one column per node), a blue hyphen "-" shows that the instances are not there because they are not supposed to be there, the status are quite self explanatory and colored
Last but not least, the "DB Type" column shows if the database is a RAC, a RACOneNode or a Single instance. This column can also be colored in White if the database is a Primary database or in Red if it is a Standby database.
The owner and group of the ORACLE_HOME which is very handy when you have different owners.

A large implementation

Please find a screenshot of a large implementation; I have removed half of the databases running there as it was not fitting my screen but you can see here a nice and clear output of this full Exadata rack in no time

Please note that here, 4 ORACLE_HOMEs are installed, the reference number in the Version column shows how useful it is in this scenario.

Different DB Types

Here is an example of an implementation with RAC and RACOneNode database types (you may also find some Single instances.

Identifying issues

This clear output of the status of all your cluster instances is also really helpful to quickly see if something wrong happened as shown in the below screenshot :

Please note that this screenshot output is slighlty different than the previous ones; Indeed, the ORACLE_HOME references in the Version column were not implemented when I took it and as it is not really easy to crash some databases just to renew my screenshots, I am still using it.

Listeners

rac-status.sh can also show the listeners:

Note: if your listeners listen on many ports, the port list is written on the right outside of the table to keep everything visible and well aligned.

Services

rac-status.sh can also show the services:

Tech resources

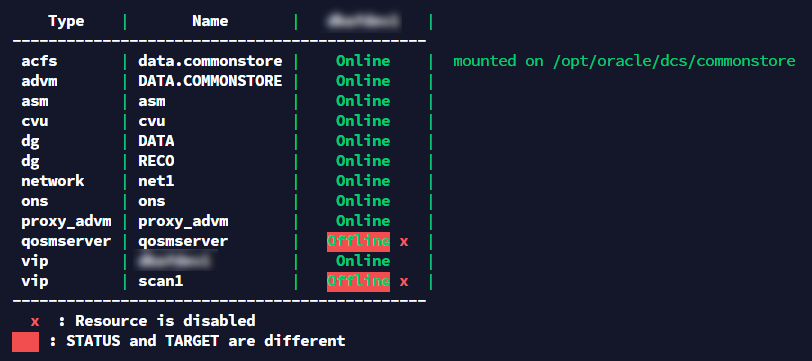

The "tech resources" (diskgroups, VIPs, ACFS, ONS, etc ...) are also shown (option -t which is included in the -a option which shows everything):

If you use ACFS, the filesystem where ACFS is mounted on will also appear on the right on the table as shown on the below example:

Quickly detect a recently restarted resource

rac-status.sh also shows with a yellow background any resource recently restarted which is very handy to quickly see if something wrong has happened in a recent past:

The default shows any resource restarted less than 24 hours ago. You can modify this default in the script with the variable DIFF_HOURS:

DIFF_HOURS="24"

Or in the command line with the -w option knowing that hours is the default unit but you can also use d for day, w for week, m for month and y for year:

$ ./rac-status.sh -w 360        # 360 hours
$ ./rac-status.sh -w 3d         # 3 days
$ ./rac-status.sh -w 1w         # 1 week
$ ./rac-status.sh -w 2m         # 2 months
$ ./rac-status.sh -w 5y         # 5 years

When STATE and TARGET are different

In the case of a resource STATE is different than its TARGET (meaning there is an issue with this resource), it will be highlighted in red with a legend below the table as shown in this screenshot -- not that databases rely on USR_ORA_OPEN_MODE instead of STATE and TARGET (from January 31st 2022 as per the what's new):

Disabled resources

It may happen that resources are disabled, rac-status.sh will then show a "x" next to the disabled resources as well as a legend about this below the table. This is very useful when you enabled and disable some resources during maintenances; it works for listeners, services and instances:

Output customization

The default I ship with the script code is to show the Listeners and the Database by default and not the Services because . . . it suits my needs. As it may not suit yours, you can easily modify this default behavior. You have few ways modifying this to fit your needs.

1/ Modify the default variables in the script:

The default behavior of the script is defined by the below variables so just comment out what you do not want as default in the script (the last uncommented value wins):

  SHOW_DB="YES"                 # Databases
 #SHOW_DB="NO"
SHOW_LSNR="YES"                 # Listeners
#SHOW_LSNR="NO"
 SHOW_SVC="YES"                 # Services
 SHOW_SVC="NO"

2/ Using the command line:

3 options are available from the command line to dynamically change the output:

-d        Revert the behavior defined by SHOW_DB  ; if SHOW_DB   is set to YES to show the databases by default, then the -d option will hide the databases
-l        Revert the behavior defined by SHOW_LSNR; if SHOW_LSNR is set to YES to show the listeners by default, then the -l option will hide the listeners
-s        Revert the behavior defined by SHOW_SVC ; if SHOW_SVC  is set to YES to show the services  by default, then the -s option will hide the services

These variables revert the default behavior. I have coded it like this as it is very efficient. Indeed, the default of the script shows the Listener and the Databases and not the Services. If I want to show the services as well, I just use the -s option.

3/ Show / hide everything:

I have also implemented 2 others handy options:

-a        Show everything regardless of the default behavior defined with SHOW_DB, SHOW_LSNR and SHOW_SVC
-n        Show nothing  regardless of the default behavior defined with SHOW_DB, SHOW_LSNR and SHOW_SVC

These are very handy as whatever the default is, they will erase it. For example, when I prepare the action plan of a maintenance, I want to save the status of every single resource across my cluster whatever the default is, I then write:

$ ./rac-status.sh -a > status_before_maintenance

If you do not know the current default of the script and do not want to bother with it, you can just show the databases only by using:

$ ./rac-status.sh -n -d              # -n shows nothing and -d revert the do not show the database from -n

You can try many combinations to get used to, it is harmless.

4/ Adapt the colors:

There are also 2 options that may be useful for you depending on your needs. Option -u to show an Uncolored output:

And the -r option to Revert the colors; it is very useful if you are using a clear terminal background:

5/ Sort the database output:

By default, the database output is sorted by database name on a alphabetic order. You can modify this using the -c option.
The -c can receive the below parameters:

c                             # followed by a number for the column number you want to sort by
d                             # to sort by database name
v                             # to sort by version
s                             # to sort by status; it can be followed by a number which
                              # is the node number you want to sort the status by
                              # if no number is specified, it is sorted by the node 1 status
t                             # to sort by DB Type
r                             # can be added to the previous parameters to make the sort reverse

Examples:

./rac-status.sh -c d      # sort by database name (the default)
./rac-status.sh -c v      # sort by version
./rac-status.sh -c vr     # sort by version in reverse order
./rac-status.sh -c c4r    # sort by the 4th column (the node 2) in reverse order
./rac-status.sh -c 4r     # same as above as "c" is default and optional
./rac-status.sh -c s2r    # sort by the status of the second node (same as c4r)
./rac-status.sh -c s      # sort by the status of the first node
./rac-status.sh -c tr     # sort by DB type in reverse order

Few points to keep in mind:

Any other option is compatible with -c
You can modify the default sort by updating the SORT_BYvariable in the script and then always enjoying your favorite way of sorting the database output like for example:

SORT_BY="c3r"      # to always sort by the 3rd column in reverse order

grep and ungrep

When you work with big implementations, the rac-status.sh output may exceed the size of your screen (especially when you show the services) and/or you may want to see the specific status of a listener or a database or only the 12c databases, etc ...
I have then implemented 2 options for the purpose of grepping or ungrepping (grep -v) in the rac-status.sh output:

-g        Act as a grep command to grep a pattern from the output (key sensitive)
-v        Act as "grep -v" to ungrep from the output  (key sensitive)

Few examples:

$ ./rac-status.sh -g 12            # Only grep 12c databases
$ ./rac-status.sh -a -g Shut       # Only the lines containing "Shut"
$ ./rac-status.sh -n -l -v Online  # Only the listeners that are not Online

Feel free to test any combination.

Environment setting

By default, rac-status.sh relies on oraenv to set the ASM environment and then access the crsctl command. If oraenv does not work for you, you can use the -e option to use your current environment. Note that the current environment has to give access to crsctl.
You can also set on top of the script USE_ORAENV="NO" instead of the default USE_ORAENV="YES" if you never want to use oraenv and always rely on the current environment.

Usages

On top of using this rac-status.sh script during my daily activities to have a quick look at what is running on a GI implementation, I also found it useful in the below scenarios :

Patching progression

rac-status.sh is very useful when patching Exadatas; Indeed, I can then easily follow what's being patched during a database nodes rolling patch (below node 2 is being patched)

Before and after a maintenance

I also use this script before and after maintenances (the output is easy to copy and paste) to be able to quickly compare the outputs and see if something is missing at the end of a maintenance, an instance that did not restart properly, etc...

$ ./rac-status.sh -a > status_before_maintenance
. . .  do your maintenance . . .
$ ./rac-status.sh -a > status_after_maintenance
$ diff status_before_maintenance status_after_maintenance

By doing these quick and simple steps, you can ensure being idempotent.

A quick monitoring tool

Please have a look at rac-mon.sh for a quick and efficient tool to monitor your cluster based on rac-status.sh.

-h to sum up the options

Feel free to use the -h option to sum up each available option with some examples:

$  ./rac-status.sh -h
NAME
        rac-status.sh - A nice overview of databases, listeners and services running across a GI 12c

SYNOPSIS
        ./rac-status.sh [-a] [-n] [-d] [-l] [-s] [-g] [-v] [-h]

DESCRIPTION
        rac-status.sh needs to be executed with a user allowed to query GI using crsctl; oraenv also has to be working
        rac-status.sh will show what is running or not running accross all the nodes of a GI 12c :
                - The databases instances (and the ORACLE_HOME they are running against)
                - The type of database : Primary, Standby, RAC One node, Single
                - The listeners (SCAN Listener and regular listeners)
                - The services
        With no option, rac-status.sh will show what is defined by the variables :
                - SHOW_DB       # To show the databases instances
                - SHOW_LSNR     # To show the listeners
                - SHOW_SVC      # To show the services
                These variables can be modified in the script itself or you can use command line option to revert their value (see below)

OPTIONS
        -a        Show everything regardless of the default behavior defined with SHOW_DB, SHOW_LSNR and SHOW_SVC
        -n        Show nothing  regardless of the default behavior defined with SHOW_DB, SHOW_LSNR and SHOW_SVC
        -a and -n are handy to erase the defaults values:
                        $ ./rac-status.sh -n -d                         # Show the databases output only
                        $ ./rac-status.sh -a -s                         # Show everything but the services (then the listeners and the databases)

        -d        Revert the behavior defined by SHOW_DB  ; if SHOW_DB   is set to YES to show the databases by default, then the -d option will hide the databases
        -l        Revert the behavior defined by SHOW_LSNR; if SHOW_LSNR is set to YES to show the listeners by default, then the -l option will hide the listeners
        -s        Revert the behavior defined by SHOW_SVC ; if SHOW_SVC  is set to YES to show the services  by default, then the -s option will hide the services
                  Note : the options are cumulative and can be combined with a "the last one wins" behavior :
                        $ ./rac-status.sh -a -l              # Show everything but the listeners (-a will force show everything then -l will hide the listeners)
                        $ ./rac-status.sh -n -d              # Show only the databases           (-n will force hide everything then -d with show the databases)

        -g        Act as a grep command to grep a pattern from the output (key sensitive)
        -v        Act as "grep -v" to ungrep from the output (key sensitive)
        -g and -v examples :
                        $ ./rac-status.sh -g Open                       # Show only the lines with "Open" on it
                        $ ./rac-status.sh -v 11                         # Do not show 11g databases
                        $ ./rac-status.sh -g "Open|Online"              # Show only the lines with "Open" or "Online" on it
                        $ ./rac-status.sh -g "Open|Online" -v 12        # Show only the lines with "Open" or "Online" on it but no those containing 12

        -h        Shows this help
$

Where to download ?

The code is hosted and maintained in my github repository, help yourself and enjoy rac-status !

I hope you'll be enjoying this script as much as I enjoy it on a daily basis !

Any suggestion, comment or bug, please let me know in the comments sections.
